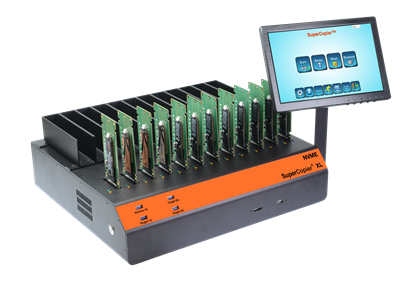

SuperCopier Desktop 12 NVMe PCIE 4.0 Ports Drive Duplicator

SuperCopier Desktop 12 NVMe PCIE4.0 drive duplicator - multiple ports NVMe SSD duplication, cloning, imaging, erase, and format unit with extreme speed, and with multiple session operations

SuperCopier Desktop 12 NVMe SSD - A multiple NVMe SSD cloning unit

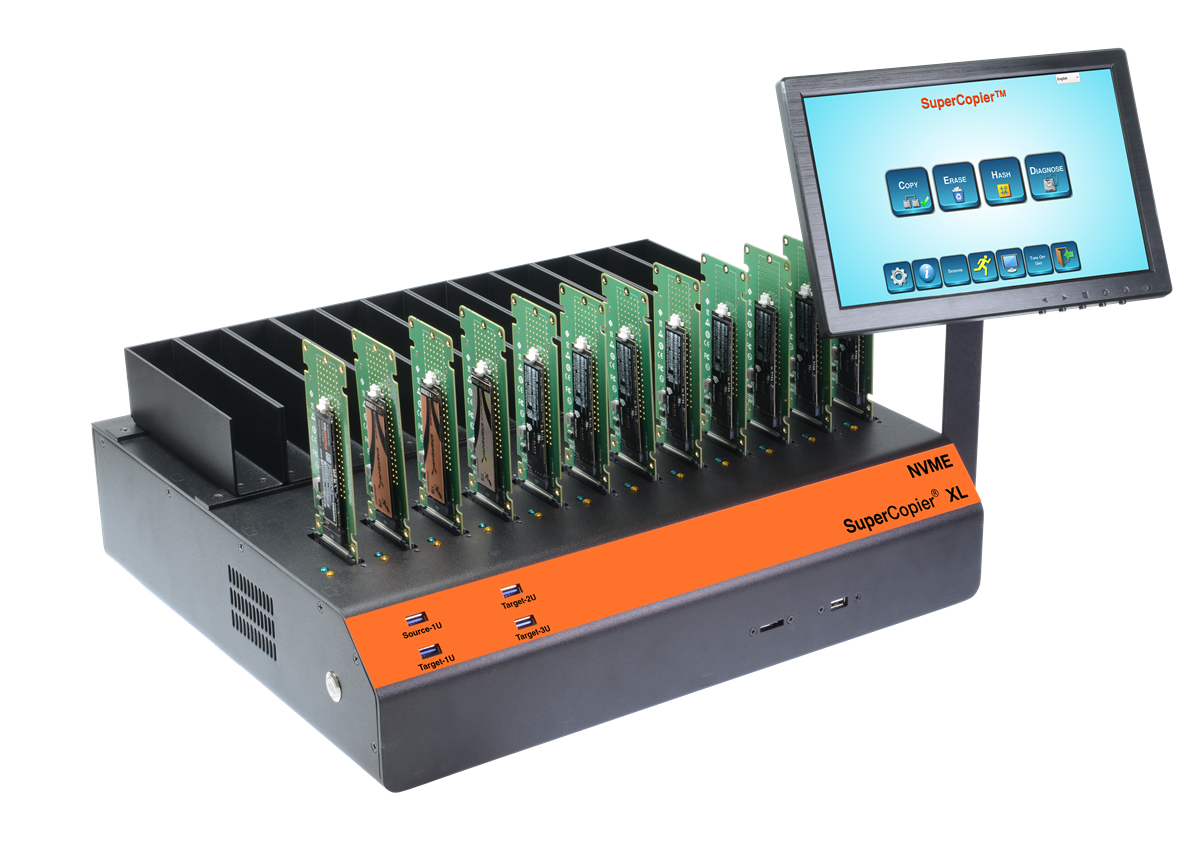

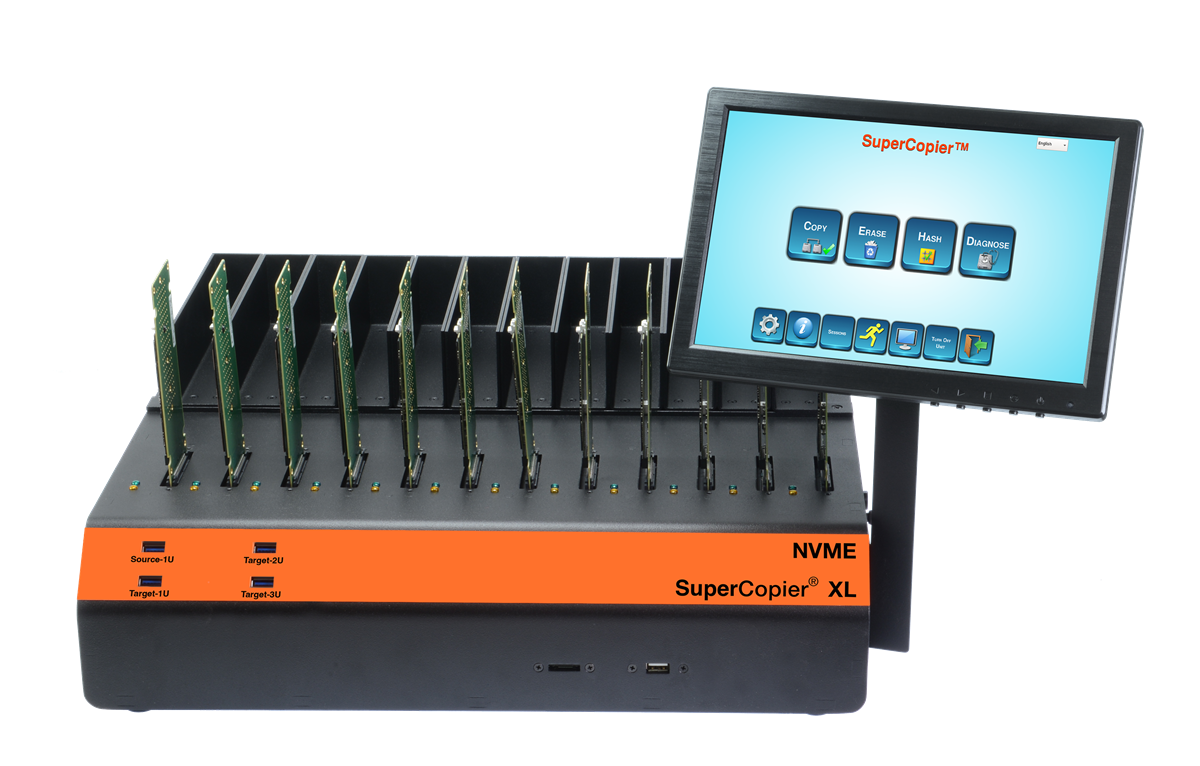

Alternative Views:

SuperCopier Desktop 12 NVMe PCIe4.0 ports unit is standalone, industrial dedicate to clone NVMe SSD unit. It is extremely fast (PCIe4.0 480GB/min per NVMe port) and most efficient. It is built with the latest hardware technology to achieve the most efficient drive duplication, performing at a very high speed, with the ability to clone multiple drives simultaneously. The unit can be used for functions such as Cloning, Imaging, Deploy, Erase, and Drive Diagnostics of Storage Devices such as NVMe (U.2, M.2, PCIe) SSD, USB flash drives and Networking cloning (10GbE). It allows for cloning methods using bit-by-bit mirror image, Quick Copy of Partitions, Selective copy of files and folders, VHD copy, and Copy to Folder. Additionally, the user can duplicate NVMe SSD. It can be used to clone 1:11 NVMe SSD and 1:9 USB3.2 storage devices. The built-in SuperCopier application supports NVMe formatted with namespaces. There is no software licensing scheme.

Our Price: $11,000.00

Availability:: Usually Ships in 1 to 2 Weeks
Product Code: SCD-0015-00A

Qty:

Description

Technical Specs

Extended Information

The SuperCopier® Desktop 12 U.2/M.2 NVMe + 10 USB3.2 + 2 TB4.0 is an

industrial, extremely fast performance at full bandwidth (480GB/min per port) unit with dedicated 12 NVMe ports for cloning and duplication. It lets the user clone, duplicate, and erase multiple drives simultaneously. The unit is designed with a desktop-style metal built for durability. It supports NVMe SSD, e-SATA drives, and USB flash drives.

The unit is supplied with 12 U.2 NVMe extension cables to plug U.2 NVME SSD and 12 U.2 to M.2 NVMe adapters that support M.2 NVMe up o 110mm without the need to screw in the SSD. The 12 slots open tray in the back of the unit is designed to lay U.2 SSD with air cooling.

The NVMe controllers are PCIe 4.0 where each NVMe port has a 4 dedicated lanes with max bandwidth of 480GB/min.

The main application supports many modes of operations, such as:
1) Mirror mode: Bit by bit imaging.
2) Quick Copy: Advanced Smart Copy of Partitions.
3) VHD copy: Clone image of a virtual drive.
4) Selective Capture of Files and Folders.
5) Copy to Folder: Copy all data files from a source drive into one folder on the target drives.
6) Supports Network Cloning.
Here are some test results:
1) Cloning from from Sabrent Rocket 4 Plus M.2 SSD to Corsair MP600 Pro LPX M.2 SSD: 193.6GB/min
2) Clone + SHA-1 + Verify from Sabrent Rocket 4 Plus M.2 SSD to Corsair MP600 Pro LPX M.2 SSD : 134.7GB/min
3) Erase + Verify WD Black 1TB NVMe SSD: 227 GB/min.

The application supports data duplication from one source drive to multiple target drives, or from multiple source drives to multiple target drives in multi-sessions cloning sessions.The user can change the port's role of a taregt port from target to be source to enable running multiple simultaneous cloning sessions, like 4:4 (which mean 4 sessions of cloning from one source to one target)
The application is updated to clone Windows 10/11.

There are many cloning and imaging standalone applications; only a few are working properly!

Some NVMe solutions in the market offer limited bandwidth for NVMe ports. This unit supporting bandwidth of 64Gbit/s per NVMe port (480GB/min).

Some of the testimonials:

"The MediaClone SuperCopier Desktop unit works very well. The unit runs very fast in multiple session operations, and it is very easy to use. We have loaded many different kinds of partitions on the source drive, and the Quick Copy mode works very well cloning the source to many targets. The application supports GPT and MBR partitions with scaling and non-scaling, NTFS re-size works with different size targets, and the latest Windows 10 is very well supported.” Benny Potlog from Intel Israel

"For our purposes, being able to sanitize many drives swiftly is a serious need. We looked into several devices but they were usually made for single purposes that didn't match what we were looking for. The MediaClone SuperCopier has allowed us to speed up cleansing drives dramatically as well as clone drives. It's flexible and allows for many operations simultaneously. In the rare event of any issues, we have always received prompt support from MediaClone. The SuperCopier is very well constructed, simple to use, and reliable." Warren Smite from Prosoftnet Calabasas, CA

“We have searched for few solutions that could help us to destroy our data from retired storage and came across MediaClone SuperWiper solution. I must say, it saved us lots of time erasing individual disks so we have decided to add the Disk Duplicator solution to clone drives. IT Folks love to be able erase data with DoD formatting tool and also provide audit trail for our auditors. Great product and I would highly recommend it.” Les Janeczko Manager, IT Infrastructure Fuzion Analytics

SuperCopier Cloning Application Settings:

HPA/DCO Automatic Supports: The application can automatically open HPA and DCO areas and resize the drive to its full native capacity to erase any "hidden data" (HPA/DCO are special areas on a SATA drive that support this feature).
Bad Sectors Handling: The user can select to skip bad sectors/blocks or abort the operation when encountering bad sectors/blocks on the source drive.
48bit LBA Addressing: Supports drives with sizes up to 256TB.

Application Features:

GUI: The SuperCopier application is designed with very simple and easy-to-navigate icons. The user can set the operation in a few clicks.
Speed: Extremely fast operation - 100% bit by bit can be up to 29 GB/min with SSD, and 11 GB/min with high rpm Hard Disk Drives.

The Application's Main Operations:

Clone: Mirror bit by bit (any OS), Quick Copy (NTFS, FAT, exFAT, HFS+, EXT2-4), Selective Capture (Folders and Files), VHD Copy, and Copy to Folder.
Erase or Format.
Drive Diagnostics.
HASH Authentication.

Cloning/Duplication:

Mirror Copy: 100% bit by bit mirror copy for any size of source and target drive with any OS. The source drive and the target drives need to be the same make and size if the user wants to boot from the target drives. The user can image a portion of the source drive by adjusting the % of the drive.
Selective Capture: Enables the user to browse and select from the source drive partitions, folders and files to copy. Supported by a drive with a mountable partition under Linux (NTFS, FAT, exFAT, HFS, and EXT2-4).
VHD Copy: Enables the user to copy VHD files from a source drive that contains multiple VHD files.
Copy-to-Folder: Copy the entire drive and save it into one Folder.
Quick Copy/Advanced Smart Copy mode: Cloning and deploying only the file system.

Scale-Down partitions:

If the size of the "data" on the source drive (not the size of the source drive!) will fit the target drive, then the quick copy will be completed. If the data on the source drive does not occupy the whole drive, the user can copy it to a smaller drive (for example, if the data occupied only 200GB on 1TB source drive, then the target drive can be 200GB, and cloning from 1TB to 200GB will work).Example of cloning with NTFS scaling down operation: Run a bench test with a 160GB source drive containing two NTFS partitions: 1) 100MB boot partition 2) remaining is Windows partition. The target drive was 120 GB, and the data load size was 16.4 GB. The "data" was fragmented, and a previous s/w revision could not succeed in copying it into an 80 GB target drive. The new, improved s/w version enables the target drive to shrink from a size of 120GB down to 23.5GB!

Supports for Scale-Down partition:

Network Cloning:

Supporst For Network cloning: Tranfer logfile,access drives, and clone from NAS.

Verification of the copied data/Built-in data transfer verification. For 100% bit by bit mirror copy: The user can select to add an optional HASH calculation value during the data transfer (MD5, SHA-1, SHA-2) as authentication and verification of the copied data. MD5 is the fastest mode, and it almost adds not delays the total copy time. For an extra precaution, the user can also enable the option to "HASH target drives and compare" which will run an additional read-pass over the target drives at the end of the copy, calculate a HASH value by reading the data from the target drives, and compare the HASH values to the one that was generated from the source drive. That extra step adds some spare time; for example, running 100% bit by bit copy from 1TB source drive to 15 of 1TB target drives can take around 2h. "HASH the target drives and compare" can add another hour to the total time.

Erase and Format Operation:

Drive Erase Protocols: DoD 5220-22M(Total 8 pasess), DoD Lite (Total of 4 passes), Security Erase(NIST), Enhanced Security Erase, Sanitize (SAS SSD), NVMe security erase/format (NVMe SSD), or User-Defined Final Data Filling Pattern and the number of erase iterations (all erase protocols are NIST 800-88 compliance).
Drive Formats: NTFS, FAT, exFAT, HFS+, and EXT4.

Drive Diagnostics Operation:

Drive Diagnostics tests and S.M.A.R.T. drive tests: If the user intends to erase a drive for re-use purposes, it is recommended to run some "Health test" on the drive before the erase process. There are three available types of tests:
Read-Verify: Supported by all storage protocols.
Short Test (2-5 minutes): The application scans random areas on the drive.
Extended Full Test (It can take hours to run): The application scans the entire drive.
S.M.A.R.T. supported; Only by SATA/SAS/SCSI storage protocols.

Logs, Erase Certification and databases:

Parallel Operations/Versatility with Multiple Cloning Sessions:

Drive Detection Application Screen:

Continuous Mode:

Multiple Sessions Application Screen:

Speed of cloning and erase:

For Erase Operation: The total erase time depends on the drive makes/model and size. It does not matter how many drives are connected to the unit since the CPU is very powerful and utilizes many cores to achieve max speed optimization.
For Cloning Operation: Quick Copy is slower than mirror imaging since it takes more time for the application to calculate and create the file system, but overall it is much faster since it does not need to clone empty spaces.

More Features:

The Unit's User Configuration: This feature allows the administrator of the unit to set specific operations with specific settings and allows the user to secure it with a lock password (This feature needs to be requested at the time of purchasing the main unit – it is needed for security purposes).
Tasks Scripting: The user can create a script enable the application to run sequential and parallel operations. There are no limitations on the number of scripts and operations.
Language Supports: Easy to implement translations for new languages. (Korean and Chinese are supported).
Settings: The user can save its setting, load a saved setting, or tap on the default setting.
Set time and day: The user can set the Date and Time.
Warranty: One year on the main unit, not include cables and accessories.
Built-in the US: The units are built and tested in the US.

Included Items:

- 8 NVMe M.2 adapters and 8 NVMe SFF-8639 extension external cables.

Main Hardware Features:

Form Factor:Desktop, Industrial Built, Last for years.
CPU: i7, i7-13700k.
Display: 10" touchscreen, color LCD display.
Hardware: Very high-quality, high performing components; some with military specifications.
OS: Linux Ubuntu 64 bit.
Security: Linux OS (Linux is less targeted by malware).
Dedicated Secure Unit: Clone, Erases and Formats storage devices (HDD, SSD, USB storage devices, and Multi Media Cards).

Hardware Specifications:

Storage controller: Two 4 Ports NVMe PCIE4.0 storage Controller
48bit LBA Addressing: Supports drives with sizes up to 256TB.

Hardware Supports:

Supports Storage Protocols and Interfaces: SATA, e-SATA enclosures, IDE, USB2.0, USB3.0, USB3.0, MMC, and M.2 SATA, U.2 NVMe, M.2 NVMe, PCIE NVMe.
Supports Form Factors: 3.5", 2.5", ZIF, 1.8", Micro-SATA, Mini-SATA, and M.2 storage devices.
Clone and Erase Multi-Media Cards: Supports SD/CF/Memory Stick/microSD with the use of a Multi-Media Card reader via a USB port.
Main Native Ports: 12 U.2 NVMe ports with data and power, 10 USB3.2 ports, one e-SATA port, 2 Thunderbolt 4.0 ports.
Power Characteristics: Built-in a universal auto switching 700 Watt UL/CE/PSE.
Operating Environment: 5°C - 55°C (40°F-130°F), relative humidity: 20-60% non-condensing.
Mechanical Characteristics:
- Unit Dimensions:
  - The base unit's dimensions: 18.0" x 15.0" x 4.0" inch.
- Unit Net Weight: 32.00 LBS.
- Shipping Dimensions:

included items:
12 U.2 NVMe Extension cables and 12 NVMe M.2 adapters with secure brackets.

Optional Items:
USB memory card reader
USB3.0 to e-SATA Adapter
M.2 to USB3.0 Adapter (SATA or PCIE base)
USB3.0 to SATA 4 Channel Kit convert 4 USB3.0 ports to 4 SATA ports at high speed (Up to 20GB/min). The kit includes 4 USB3.0 to SATA hard drive adapters and 1 PS to power 4 hard disk drives

Features

Standalone, Secure, No License Scheme, NVMe SSD Drives Duplicator, Built with Extreme Performing Hardware, Heavy Duty, Easy to Use, and Very Flexible User Interface. Standalone hardware gives the user consistent performances and is the most secure solution. With no licensing scheme, it makes the solution cost-effective. In addition, it comes with free s/w updates and supports for the product's lifetime. The unit runs 24/7, 365 days of the year, with no failure.

Application Features:

• Scaling NTFS, FAT32, and EXFAT partitions.

• One of the best NTFS scaling down apps.

• Copy/Erase Bitlocker encrypted partitions.

• Win8, Win10 support.

• Supports MBR and GPT partitioning.

• S.M.A.R.T. drive's diagnostics tests.

• Read-back-verify drive test.

• Remove ATA passwords*

* some drive models

• For NVMe SSD, the application Supports:

-Copy NVMe SSDs

-NVMe namespaces

-NVMe erase/format

Operation Highlights:

• Hot swapping Ports: Each unit’s port is a hot swap port. When a session completes, the user can plug another drive and select it to run a new operation.

• Scripting: Easy Scripting can be set and used for a repeat operation.

• Reporting: Detailed logs for drive duplication and drive erase sessions.

• SQL Erase Database: A collection of the erase logs, erase certificates, and drive information.

• Easy Export of Erase logs and the Erase database to a USB stick or share it over a network.

• Access/Control the unit remotely.

Example of a typical cloning operation:

For high volume:

NVMe SSD: clone 1 to 7 in one session.

USB 3.2: clone 1 to 9 in one session.

For a variety of source drives:

Any combination of the ports up to 4 to 4 for NVMe SSD in 4 simultaneous sessions and up to 5 to 5 for USB 3.2 flash drives in simultaneous sessions.
